Features
Due to the FCC Narrowbanding mandate in the United States, product specifications and brochures for Motorola Solutions two-way radio products may indicate 25 kHz/12.5 kHz analog/digital operation which may not be the standard mode of operation at the time of shipment after Jan. 1st 2013.
Text Messaging (XPR 6550, XPR 6580, XPR 6380, XPR 6350)
Use text messaging when discretion is required or routine communication needs to be delivered without interrupting workers or guests
Certified Intrinsically Safe (XPR 6550, XPR 6580, XPR 6380, XPR 6350)
Certified as intrinsically safe by FM when purchased and equipped with an FM battery for use in hazardous environments
Basic or Enhanced Privacy (XPR 6550, XPR 6580, XPR 6380, XPR 6350)
Built-in scrambling for increased security
Analog and Digital Compatible (XPR 6100, XPR 6350, XPR 6380, XPR 6550, XPR 6580)
Provides an easy migration to digital operation
Display (XPR 6550, XPR 6580)
Flexible, menu-driven interface uses icons or text and large and easy-to-use navigation buttons, to ease message reading and menu navigation
Bright Status LED (XPR 6550, XPR 6580, XPR 6380, XPR 6350, XPR 6100)
Tricolor LED indicator shows feedback of calling, scanning or monitoring features
Integrated GPS (XPR 6550, XPR 6580, XPR 6380, XPR 6350)
Locate mobile work teams without additional equipment to purchase, install or maintain.
Productivity Enhancing Data Applications (XPR 6550, XPR 6580, XPR 6380, XPR 6350)
Features the industry's largest application developer program that enables a wide variety of customized applications including: work order tickets, system management, email gateways, man-down, location tracking, telephony, dispatch and much more
IP Site Connect
Use your IP network to extend the voice and data capabilities of MOTOTRBO by linking repeaters together. You can create a continuous network that covers employees at 15 geographically-dispersed locations. You can also link up to 15 sites to create wide area coverage or enhance coverage at a single site that has physical barriers.
Capacity Plus
Opt for this single site, digital entry-level trunking system that maximizes the capacity of MOTOTRBO by connecting several repeaters together. You can use it for a high volume of voice and data communication and link over a thousand users at a single site without adding new frequencies. The Digital Voting option offers an enhanced level of coverage for wide areas and difficult geographies.
Linked Capacity Plus
Expand the capacity and extend the coverage of MOTOTRBO with this multi-site, digital, entry-level trunking system. It leverages the high capacity of Capacity Plus with the wide area coverage capabilities of IP Site Connect to keep employees at many locations affordably connected.
Connect Plus
Unify your entire enterprise with this scalable, multi-site digital trunking system that coordinates resources using a dedicated control channel. Calls can be queued during busy times until an open channel is available, important users can be assigned priority status and a wireline console can be used for centralized dispatch.
Digital Telephone Interconnect (XPR 6550, XPR 6580, XPR 6380, XPR 6350)
Communicate between radios and landline or mobile phones
Transmit Interrupt (XPR 6550, XPR 6580, XPR 6380, XPR 6350)
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it's needed.
Rugged Design (XPR 6550, XPR 6580, XPR 6380, XPR 6350, XPR6100)
Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP57).
Specification Sheet
MOTOTRBO™ Portable Radio Spec Sheet
MOTOTRBO™ Portable Radio Spec Sheet
Performance Characteristics
-
Estimated battery life
Digital 13 hours, Analog: 9 hours (XPR 6550, XPR 6350, XPR 6100)
Digital 17 hours, Analog: 13 hours (XPR 6580, XPR 6380) -
Repeater capable
Yes
-
Frequency range
800 MHz, 900 MHz (XPR 6380, XPR 6580)
VHF: 136-174 MHz, UHF: 403-470 MHz, 450-512 MHz (XPR 6350, XPR 6550)
UHF: 403-470 MHz, 450-512 MHz (XPR 6100) -
Standard battery chemistry type
Lithium Ion
Physical Characteristics
-
Emergency button
Yes
-
Dimensions H x W x D (with standard battery)
5.12 x 2.50 x 1.39 in. (131.5 x 63.5 x 35.2 mm) H x W x D
-
Weight (with standard battery)
XPR 6550, XPR 6580
12.7 oz. (360 g) (with 1500 mAh IMPRES Li-Ion battery),
13 oz (370 g) (with IMPRES 1400 mAh Li-Ion FM battery),
13.7 oz (375 g) (with IMPRES 2150 mAh Li-Ion battery)
15.2 oz (430 g) (with 1300 mAh NiMH battery)
XPR 6350, XPR 6380, XPR 6100
11.6 oz. (330 g) (with 1500 mAh IMPRES Li-Ion battery),
12 oz (340 g) (with IMPRES 1400 mAh Li-Ion FM battery),
12.1 oz (345 g) (with IMPRES 2150 mAh Li-Ion battery)
14.1 oz (400 g) (with 1300 mAh NiMH battery)
-
Available option board
Yes
Radio Features
-
Integrated voice and data
Yes
-
Scan types
Dual priority
-
Number of channels
1000 (XPR 6550, XPR 6580)
32 (XPR 6350, XPR 6380, XPR 6100)
-
Talkaround
Yes
-
CPS (Customer Programming Software)
Yes
-
GPS operation
Yes
-
Text messaging capable
Yes
-
Signaling
Digital Enhanced Call Management - Encode/Decode: call alert, emergency, push-to-talk ID, radio check, remote monitor, private call, all call, transmit interrupt; MDC 1200 signaling; Quik-Call II™ signaling (XPR 6580, XPR 6380, XPR 6550, XPR 6350)
Enhanced Call Management. Encode/Decode: private call, call alert. Encode only: push-to-talk ID. Decode only: all call (XPR 6100) -
Channel spacing
12.5
-
Programmable buttons
Yes
Technology
-
System type
Conventional
-
Digital technology
Yes
User Environment
-
Intrinsically safe
Yes
-
Submersible
Yes
-
Mil spec
810 E, 810 F
-
IP Standards
IP57
-
Noise reduction software
Yes
Warranty
-
Standard package
Display Portable Radio, Standard Whip with GPS Antenna, IMPRES™ Li-ion 1500 mAh Submersible Battery, IMPRES™ Single Unit Charger, 2.5" Belt Clip, User Guide and Two-year Standard Warranty plus One-year Repair Service Advantage (US only)/Extended Warranty (Canada only)
-
Standard warranty
2 years
Related Products
-
-

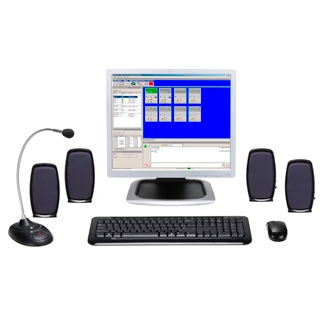

MIP 5000 VoIP Radio Console (Discontinued)
